FEATURES

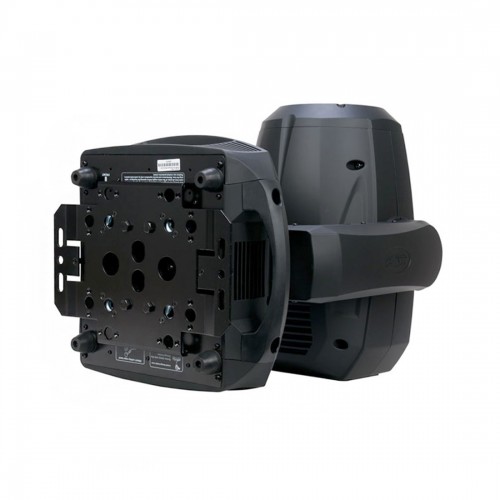

Profile / Framing Shutter 18 ° LED Spot Luminaire

4 Blade Rotating Framing Module

2 Color Wheels and 2 Gobo Wheels

Flicker Free Operation for TV and Film

3-Rotating Prism Facet

Pan / Tilt Lock

Art-NET (DMX over Ethernet) Support

RDM - Remote Device Management

SOURCE

180W Cool White LED Engine

Total 9,000 Lumens, 6,500K,> 85 CRI

20,000 Hour LED Average Life

PHOTOMETRIC DATA

14.170 LUX @ 2.5m (18 °)

4,561 LUX 5m @ (18 °)

1,721 LUX @ 7.5m (18 °)

EFFECTS

4 Blade Rotating Framing Module

3-Facet Rotating Prism and Macros

Frost Filter

Strobe: 1-18fps

Dimming: 0% - 100%

COLOR

(2) Color Wheels

(5) Including UV Dichroic Colors + White

(6) Including CTO Dichroic Colors + White

GOBOS

(2) Gobo Wheels

(7) Rotating / Interchangeable / Indexing Glass & Metal gobos

(7) Static-Stamped / Indexing Metal gobos

Size: 25mm OD / ID 16.5mm

CONTROL / CONNECTIONS

(3) DMX Channel Modes (24, 26, 36)

RDM (Remote Device Management)

6 Touch Button Control Panel

Full Color 180 ° Reversible LCD Display Menu

8/16 Bit Resolution Movement Adjustable

5pin DMX In / Out

RJ45 Ethercon In / Out (Art-NET)

PowerCon Power In / Out

SIZE / WEIGHT

Length: 14.2 "(360mm)

Width: 16.0 "(408mm)

Vertical Height: 25.0 "(493mm)

Weight: 57.0 lbs. (26 kg)

ELECTRICAL / THERMAL

AC 100-240V - 50 / 60Hz

250W Max Power Consumption

14 ° F to 113 ° F (-10 ° C to 45 ° C)
