FEATURES

 Cool White 17° Beam LED Spot Illuminare

 Low Heat, Quiet Operation, and Hibernation Mode

 Frost Filter Hybrid Wash + Infinity Prism Effects

 Flicker Free Operation For Broadcast TV and FILM

Resources

 Platinum Spot LED II Specification Sheet

 Platinum Spot LED II CAD

 Platinum Spot LED II Photometric Data

 Platinum Spot LED II Dimensional Drawings

 Platinum Spot LED II DMX Traits

 Platinum Spot LED II Colors and Gobos

Specifications

 SOURCE

 135W Cool White LED Engine

 60,000 Hour Average LED Life

 PHOTOMETRIC DATA

 6,500K, >85CRI

 11,220 LUX 1,042 FC @8.2’ (2.5m) (17° Full ON)

 EFFECTS

 Frost Filter Hybrid Wash Effect

 3-Facet + Infinity Rotating Prisms and Macros

 Motorized Focus

 Iris: 5% - 100%

 Strobe: 1-18fps

 Dimming 0% - 100%

 COLOR

 8 Dichroic Colors + White (Open)

 GOBOS

 7 Interchangeable / Rotating / Indexing Glass Gobos

 Gobo Size: OD 1.06” (27mm) / ID 0.86” (22mm)

 7 Static / Indexing Metal Gobos

 CONTROL / CONNECTIONS

 (3) DMX Channel Modes (16 / 14 / 22)

 RDM (Remote Device Management)

 6 Button Touch Control Panel

 Full Color 180° Reversible LCD Menu Display

 8 / 16 Bit Resolution Adjustable Movement

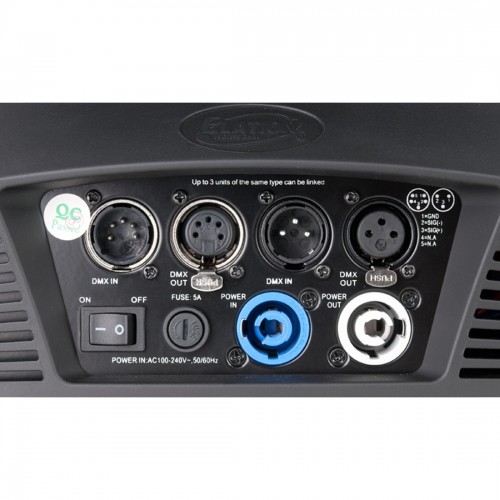

 3pin & 5pin DMX In/Out

 SIZE / WEIGHT

 Length: 14.1” (357mm)

 Width: 13.2” (335mm)

 Vertical Height: 20.7” (526mm)

 Weight: 35.3 lbs. (16 kg)

 ELECTRICAL / THERMAL

 AC 100-240V - 50/60Hz

 230W Max Power Consumption

 -13°F to 113°F (-25°C to 45°C)
