FEATURES

Comparable Output to 1,200W Fixtures

Innovative Auto Focus Function

4-Blade Rotating Framing Module

Motorized 8 ° - 50 ° Zoom and Focus

CMY Color Mixing Linear CTO and Color Correction

Bi-Directional Animation and Frost Effects

3-Rotating Prism Facet

Pan / Tilt Lock

Internal EWDMX Wireless DMX Receiver

RDM - Remote Device Management

SOURCE

Philips MSR Platinum 35 ™ 800W Lamp

55,000 Lumen, 7,800K,> 75 CRI

750 Hour Average Lamp Life

PHOTOMETRIC DATA

18,750 LUX @ 10M (8 ° Min. Zoom)

10M @ 812 LUX (50 ° C max. Zoom)

EFFECTS

4 Rotating Blade Framing Module

160 ° Animation Effect

3-Facet Prism and (16) Prism Macros

Frost Filter

Strobe: 1-18fps

Dimming: 0% - 100%

COLOR

Variable CMY Color Mixing

Linear CTO Color Correction

(8) Interchangeable Dichroic Colors Including UV, CTB + White

GOBOS

(2) Gobo Wheels

(6) Interchangeable / Rotating / Indexing Glass & Metal gobos

(3) Static-Stamped / Indexing Metal gobos + 160 ° Animation

Size: 29mm OD / ID 24mm

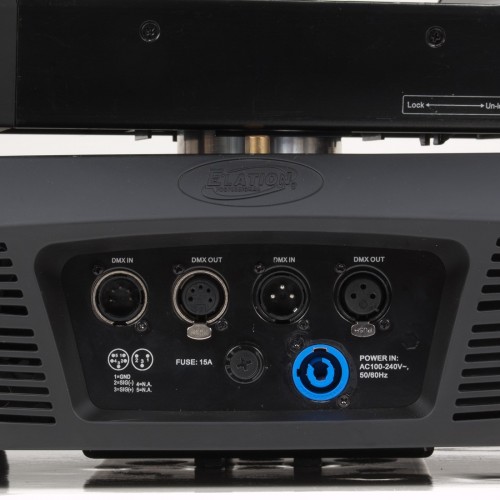

CONTROL / CONNECTIONS

3 DMX Channel Modes (37/39/60)

RDM (Remote Device Management)

6 Touch Button Control Panel

Full Color 180 ° Reversible LCD Display Menu

8/16 Bit Resolution Movement Adjustable

3pin & 5pin DMX In / Out

PowerCon Power In

SIZE / WEIGHT

Length: 19.9 "(506.5mm)

Width: 17.6 "(447.3mm)

Vertical Height: 28.6 "(726.5mm)

Weight: 88.2 lbs. (40 kg)

ELECTRICAL / THERMAL

AC 100-240V - 50 / 60Hz

1044W Max Power Consumption

14 ° F to 113 ° F (-10 ° C to 45 ° C)
