FEATURES

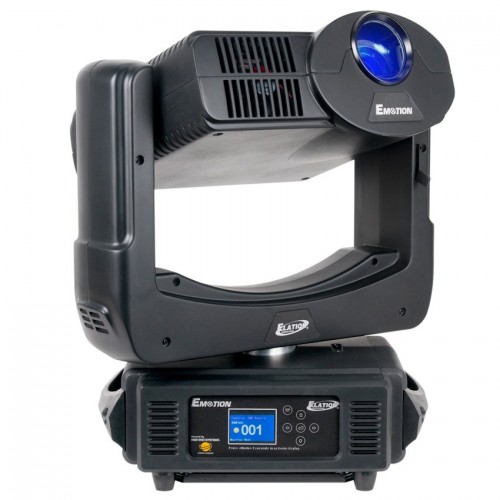

Compact High Output Digital Projector Moving Head

Internal 64GB Solid-State Hard Drive Media Server

Elation Gobo Catalog Included (Royalty Free)

255 Video Images Included (Royalty Free)

40 Live / Background Effects and Color Control

Easy Custom Content Upload via CMA Application

DMX Control via 5 pin DMX or air-NET

Digital and Optical Zoom / Focus Motorized

RGB Color Mixing CMY + / Mechanical Shutter / Dimmer

Collage Generator ™

Variable Edge Blending

PHOTOMETRIC DATA

Osram 240W UHP Lamp - 3000 Hour Lamp Life * Average

4,000 ANSI Lumens / Native 1024 x 768 (XGA) DLP / DMD

PROJECTOR SPECIFICATIONS

Osram 240W UHP Lamp

4,000 ANSI Lumens,> 80 CRI 6,700K

3,000 Hour Average Lamp Life * (6,000 Hours ECO Mode)

Aspect Ratio: 4: 3 Native (16: 9 Compatible)

Resolution: XGA 1074 x 768

Image Size 30 "to 307"

Projection Distance: 3.9 '(1.2m) - 32.8' (10m)

Contrast Ratio: 15,000: 1

Display Technology: DLP DMD Chip

1 Billion Colors (10bit)

EFFECTS

Digital and Optical Zoom

Motorized Focus

CMY / RGB Color Mixing

Mechanical Shutter / Dimmer

Elation Gobo Catalog (Royalty Free)

255 Video Images (Royalty Free)

40 Live / Background Effects and Color Control

28 Transition Effects Between Layers

COLLAGE GENERATOR ™ software (included)

This effect Enables multiple Elation eMotion ™ fixtures to create an array of seamless projections using from 2-16 fixtures. The effect can create vertical, horizontal and central panoramic configurations controlled from a DMX console. Stock, custom, and custom HD Collage Generator ™ content can all be displayed in Collage mode.

VARIABLE EDGE BLENDING

On-the-Fly adjustment of overlap between blend multiple projectors When used in conjunction with any of the Collage Generator ™ Modes. Using this mode Gives more flexibility for sizing the collage to a given Beheerder screen or projection surface, as well as smoother blending if wider blend regions are used.

CONTROL / CONNECTIONS

(2) Modes DMX Channel (32/54)

Dual Layer Media Content Control

6 Touch Button Control Panel

Full Color 180 ° Reversible LCD Display Menu

(2) USB 3.0 Ports - Graphic Server Inputs

5pin DMX In / Out

(2) RJ45 Ports - Graphic Server / Art-NET Inputs

PowerCon Power In / Out

SIZE / WEIGHT

Length: 18.9 "(480mm)

Width: 15.0 "(382mm)
