FEATURES
Low Heat, >90CRI Dynamic LED Array Panel
30° Beam Angle
Variable Color Temperature Settings (3,200K - 6,500K)

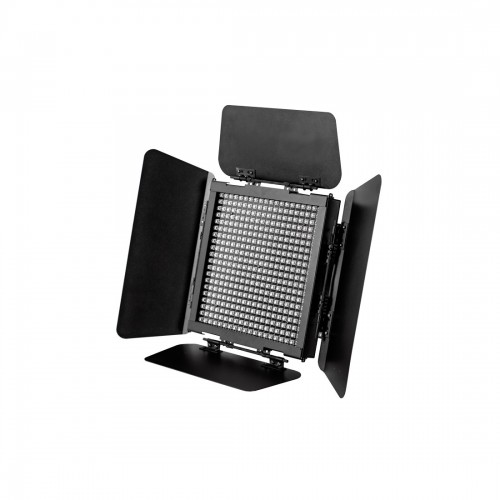

Adjustable Barn Doors
Magnetic Gel/Diffuser Holder
Manual and DMX Controlled Color Temp and Dimming
Flicker Free Operation for Broadcast TV and Film
Multiple Unit Power Linking

SOURCE
(200) Warm White + (200) Cool White LEDs

PHOTOMETRIC DATA
340 LUX 32 FC @6.6’ (2M) (30° Warm White 3,200K)
420 LUX 39 FC @6.6’ (2M) (30° Cool White 6,500K)
600 LUX 56 FC @6.6’ (2M) (30° Full On 4,500-5,000K)

EFFECTS
Variable Color Temperature (3,200K - 6,500K)
Electronic Dimming (0% - 100%)

CONTROL / CONNECTIONS
(3) DMX Channel Modes (2/2/3)
Manual and DMX Color Temperature and Dimming

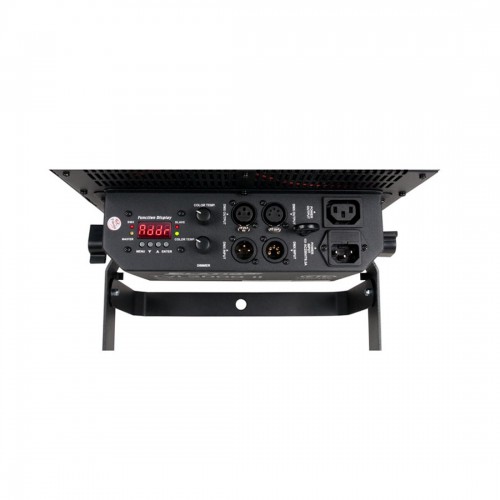

(4) Button and (2) Dial Control Panel
LCD Menu Display
3pin and 5pin DMX In/Out
Power Link Up To (5) Units

SIZE / WEIGHT
Length: 15.9” (406mm)
Width: 13.7” (350mm)
Vertical Height: 4.4” (113mm)
Weight: 13.6 lbs. (6.2 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
68W Max Power Consumption
TA: 40°C Max Ambient Temperature
