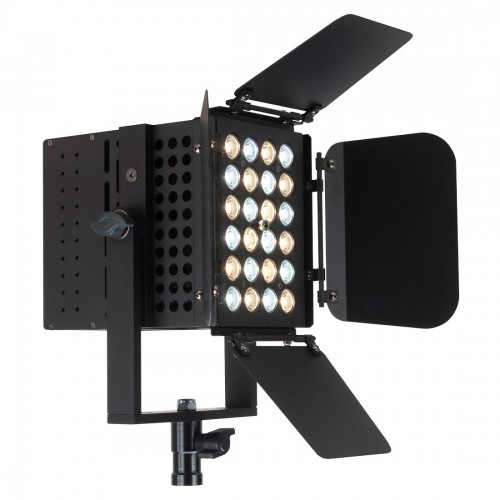

FEATURES
Convection Cooled, No Fans
Flicker Free Operation for TV and Film
Powercon In and 24V In For Optional Battery Pack
Replaces Key- or Headlights
Adjustable Barndoors Included
Optional Brackets for Mounting Multiple Units Together
Available 10°-115° Beam Angle (Multiple Lens Kits Included)

SOURCE
12x 3W 3,200K Warm White LED
12x 3W 5,000K Cool White LED

PHOTOMETRIC DATA
38,030 LUX @ 1M (25° 4,500K)

EFFECTS
10°, 25°, 40°, 60° Beam Angle Lens Kits Included
115° Beam Angle W/O Lens Kit Attached
Electronic Dimming (0% - 100%)

CONTROL / CONNECTIONS
(4) Button Control Panel LED Menu Display
2 DMX Channel Modes (2, 3)
5pin DMX In/Out powerCON Power In

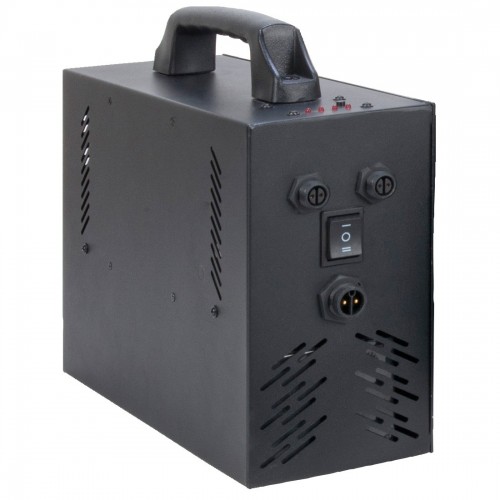

DC 24V In for Optional Battery Pack

SIZE / WEIGHT
Length: 8.7” (220mm)
Width: 7.9” (200mm)
Vertical Height: 12.5” (317mm)
Weight: 11.3 lbs. (5.1 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
72W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
