CARACTERÍSTICAS
High Power Long Life 3-in-1 RGB COB Strip
82° Beam 106° Field Angles
(5) Variable Dimming Curve Modes
Silent Operation
Individual Control of Each COB Module
Flicker Free Operation for TV and Film
Art-NET (DMX Over Ethernet) Support
Klingnet™ Support
RDM (Remote Device Management)

SOURCE
(10) 30W 3-in-1 COB LEDs
100,000 Hour Average LED Life

PHOTOMETRIC DATA
3,890 LUX 361 FC @3.3’ (1m) (82° Full ON)
1,237 LUX 115 FC @6.6’ (2m) (82° Full ON)
613 LUX 57 FC @9.8’ (3m) (82° Full ON)
345 LUX 32 FC @13.1’ (4m) (82° Full ON)
227 LUX 21 FC @16.4’ (5m) (82° Full ON)

EFFECTS
Strobe: 1-18fps
Dimming: 0% - 100%
(5) Variable Dimming Curve Modes
Individual COB Module Control

COLOR

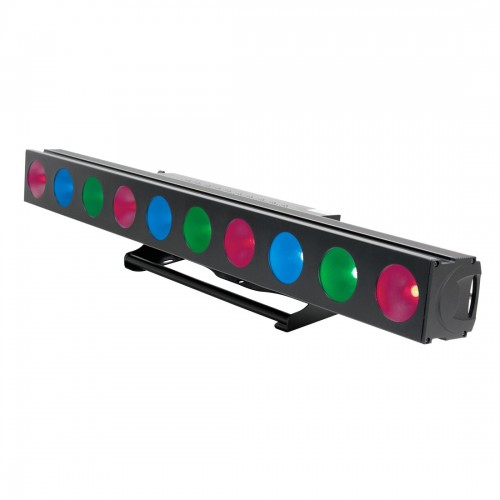

Full RGB Color Mixing and Color Macros

CONTROL / CONNECTIONS
(8) DMX Channel Modes (3 / 4 / 6 / 9 / 30 / 33 / 36 / 60)
RDM (Remote Device Management)

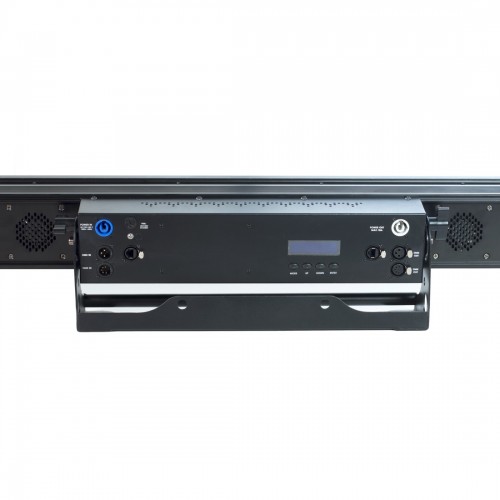

(4) Button Control Panel and LCD Menu Display
3pin & 5pin DMX In/Out
RJ45 etherCON In/Out (Art-NET™ & Klingnet™ Support)
powerCON Power In/Out

SIZE / WEIGHT
Length: 43.3” (1100mm)
Width: 6.4” (121mm)
Vertical Height: 6.8” (172mm)
Weight: 21.0 lbs. (9.5 kg)

ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
312W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
