SPECIFICATIONS

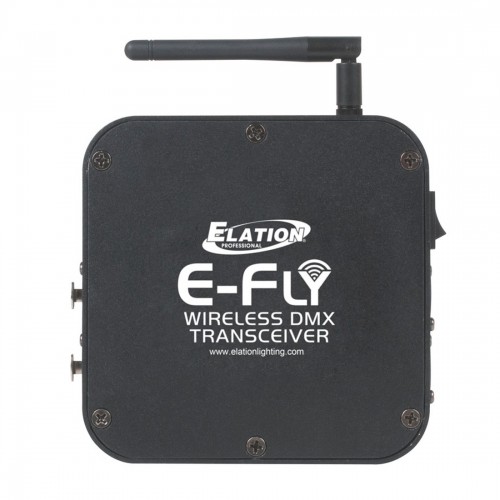

Wireless DMX Transceiver (Transmitter/Receiver In One)
Rechargeable Battery Life - Up To 20-25 Hours From a 4 Hour Charge

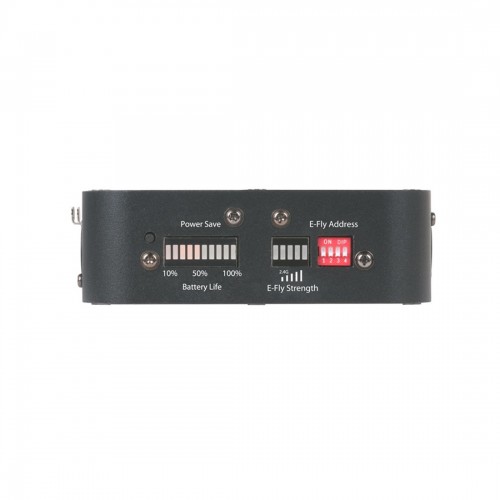

Battery Life and Signal Strength Indicator Display
Wireless Range Up to 2,500 ft (762m) Open Line of Sight
Transmit To Multiple Receivers On Same Radio Channel
Supports Up To (15) DMX-512 Universes
(15) Radio Channels (1 DMX universe per channel)
Auto Paring Feature
3pin & 5pin DMX In/Out
Wireless Frequency: 2.4 GHz ISM

CONTROL / CONNECTIONS
Battery Switch
Power Save Button

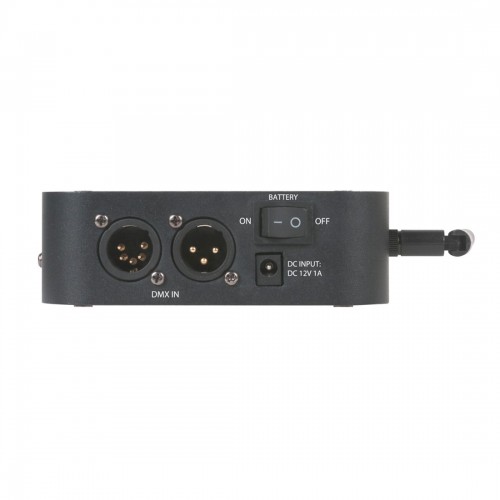

3pin and 5pin DMX In/Out
12VDC Power Supply Input

SIZE / WEIGHT
Length: 6.0” (152.7mm)
Width: 5.3” (134.4mm)
Vertical Height: 1.6” (62mm)
Weight: 1.3 lbs. (0.6kg)

ELECTRICAL / THERMAL
12VDC, 1A (AC or DC powered)
