FEATURES
(4) Universal DMX Ports (can be set as Input or Output)
(2) RJ45 TCP/IP 10/100M Ethernet Connections
Rotary Menu Wheel / Function Selection Button
LCD Menu / Function Display
PowerCON Power In
Auto MDI/MDIX, DMX-512, and ArtNet Support
ArtNet - DMX Bilateral Signal Conversion
DMX Splitter Function (1Input / 3 Outputs)
LCD Display & LED Indicators
Broadcast Mode (One Device Transmits Same Signal to Other Connected Devices)
Backup Mode

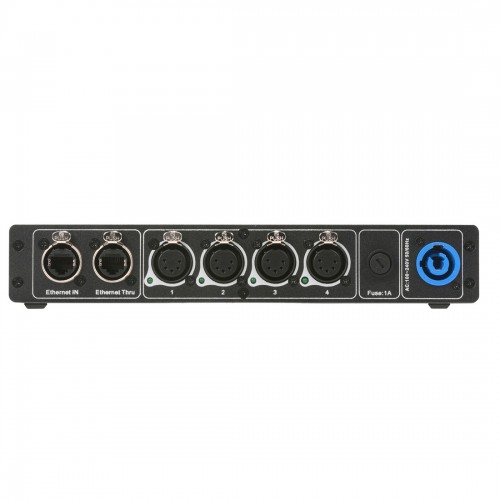

CONTROL / CONNECTIONS
(4) 5pin DMX Ports
(2) RJ45 TCP/IP 10/100M Ethernet Connections
Rotary Menu Wheel / Function Selection Button
LCD Menu / Function Display
PowerCON Power In

SIZE / WEIGHT
Length: 10.0” (255mm)
Width: 6.8” (173mm)
Vertical Height: 1.7” (43mm)
Weight: 3.5 lbs. (1.6kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
5W Max Power Consumption
35.6°F (2°C) to 113°F (45°C)
