SPECIFICATIONS

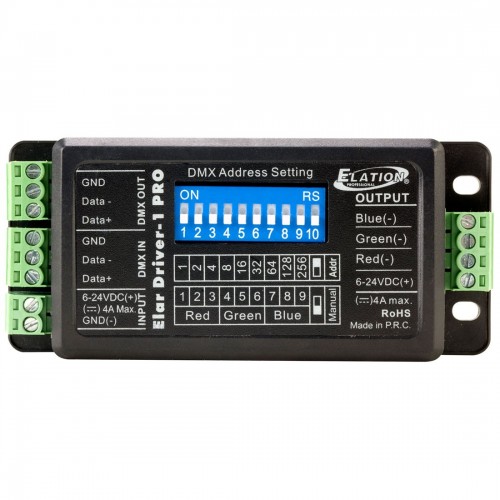

- Universal, single channel, LED driver

- 10 position dipswitch for Stand Alone presets and DMX address

- USITT DMX512 (1990) compatible

- DMX and Stand Alone operation modes

- Power Output: Dual terminal type, 12- 24VDC outputs,

  6 Amps Max.

- DMX Output Operation Modes: One DMX channel

- Power Input: 12- 24VDC, 6 Amps Max.

- DMX Input: 3-Pin terminal type connector

- DMX Output: 3- Pin terminal type connector

- Dimensions: 67mm x 40mm x 15mm

- Weight: 150g

- Operation Temperature: -10 degC to +50 degC

- Storage Temperature: - 20 degC to +70 degC
