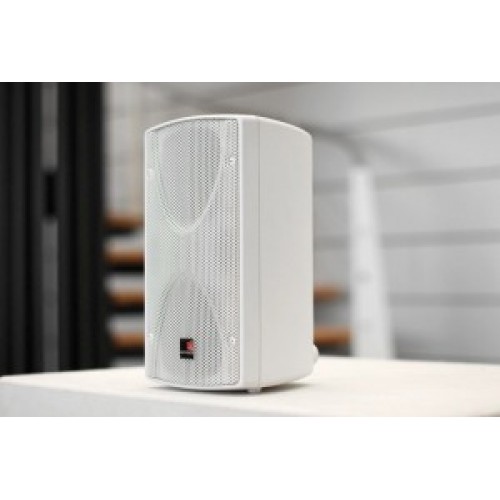

The P204 is a 16 Ohm compact full range weatherproof plastic loudspeaker, designed to be used as a sound reinforcement speaker in a wide variety of audio applications. The double high sensitivity 4” and the 25mm silk soft dome tweeter produce full range sound quality for foreground or background music, being voiced for maximum speech clarity and intelligibility. The enclosure includes a special mounting bracket with an adjustable splay angle of 10° vertically. The 3 support base provided by the flat bottom surface of the cabinet, allows also the speaker to be set on a surface such as a shelf

Frequency Response: 80 Hz – 20 kHz ±4dB, measured on axys.
Nominal Dispersion: 120°H x 120°V@-6db points.
Impedance: 16 Ohm.
Sensitivity: 91 dB (1w/1m).
Calculated Max Spl: 110 dB continuous/116 peak.
Power Handling:80 W nominal/160 W continuos.
Dimensions (HxWxD): 182x182x320 mm.
Net Weight: 4,5 kg.
Components: 2×4” LF driver, 1x25mm.

Construction:
Weatherproof plastic. Finished in white.

Grille:
Powder coated perforated steel with acoustically transparent reticulated foam.
