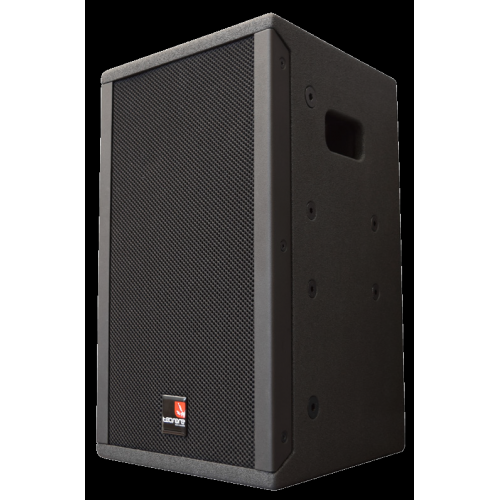

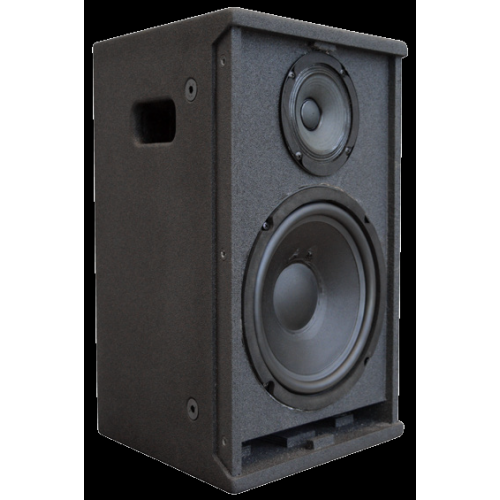

The IBZA8 is a trapezoidal compact full range loudspeaker, which houses a long excursion 8” and high frequency cone tweeter. It has a highly extended bass performance for such a small volume, with a well-balanced mid and very smooth and natural high section. This two-way system is designed for professional applications where hi fi  quality is required from a compact enclosure. It has been designed for use as stand-alone full-range speaker or together with a passive sub woofer (E.G. the SW115). The box houses multiple internal rigging points for groundsupport, truss and wall mounting, and Speakon NL4  connectors. The enclosure has been made with the latest techniques ensuring a perfect and rigid construction. Weatherized finish is provided, as the cabinet is coated with rugged Polyurea texture finish and protected with specially grills. The system’s choice can only be passive (IBZA8).

Frequency Response: 42 Hz – 20 kHz ±4dB, measured on axys.
Nominal Dispersion: 110°H x 110°V@-6db points.
Impedance: 8 Ohm.
SPL Maximum: 117 dB.
Power Handling: #160 W nominal. *320 W continuos.
Dimensions (HxWxD): 400 x 250 x 250 mm.
Net Weight: 10 kg.
Components: 1×8” LF driver, 1 cone tweeter HF.
Construction: 16mm birch plywood. Finished in black semi-matt textured Polyurea weatherized coating. Two recessed carrying handle.
Grille: Powder coated perforated steel with acoustically transparent reticulated foam.
