FEATURES

Patent Pending 3-in-1 Fixture - Beam, Spot and Wash Luminaire

Output comparable to 700W Fixtures

Innovative Auto Focus Function

In LUX Loss in Spot Mode

3 ° - 18 ° Beam and 5 ° - 30 ° Spot Zoom

CTO & CTB Color Correction

6-and 8-Way Linear Facet Rotating Prisms

Pan / Tilt Lock

Art-NET (DMX over Ethernet) Support

RDM - Remote Device Management

SOURCE

Philips MSD Platinum ™ 17 RA 350W Lamp

15,000 Total Lamp Lumens, 6,900K, CRI 85

1,500 Hour Lamp Life Average

PHOTOMETRIC DATA

14.324 Lumen Beam Mode / 7,281 Lumen Spot Mode

107,000 LUX @ 15m (3rd Beam)

5,133 LUX @ 15m (5th Spot)

EFFECTS

8-Facet Rotating Prism and (16) Macros

Frost Filter

Strobe: 1-18fps

Dimming: 0% - 100%

COLOR

(10) Dichroic Colors Including UV, CTB, CTO + White

GOBOS

(2) Gobo Wheels

(8) Interchangeable / Rotating / Indexing Glass & Metal gobos

(12) Static-Stamped / Indexing Metal gobos

Size: 16.3mm OD / ID 10mm

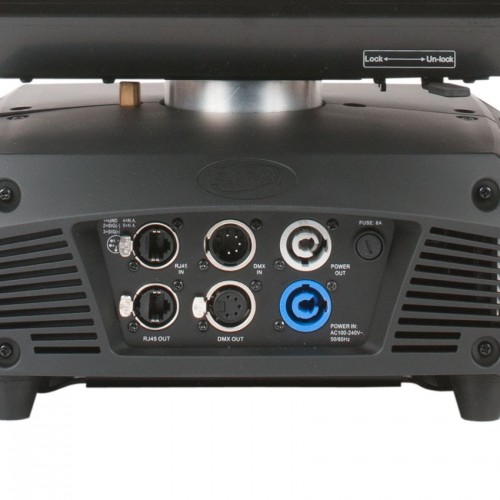

CONTROL / CONNECTIONS

(3) DMX Channel Modes (16/18/25)

RDM (Remote Device Management)

6 Touch Button Control Panel

Full Color 180 ° Reversible LCD Display Menu

8/16 Bit Resolution Movement Adjustable

5pin DMX In / Out

RJ45 Ethercon In / Out (Art-NET)

PowerCon Power In / Out

SIZE / WEIGHT

Length: 14.1 "(359mm)

Width: 19.7 "(502mm)

Vertical Height: 28.7 "(730mm)

Weight: 73.0 lbs. (33.1 kg)

ELECTRICAL / THERMAL

AC 100-240V - 50 / 60Hz

550W Max Power Consumption

14 ° F to 113 ° F (-10 ° C to 45 ° C)
